What Are The Black Dots On My Windshield?

May 2, 2024

Introduction

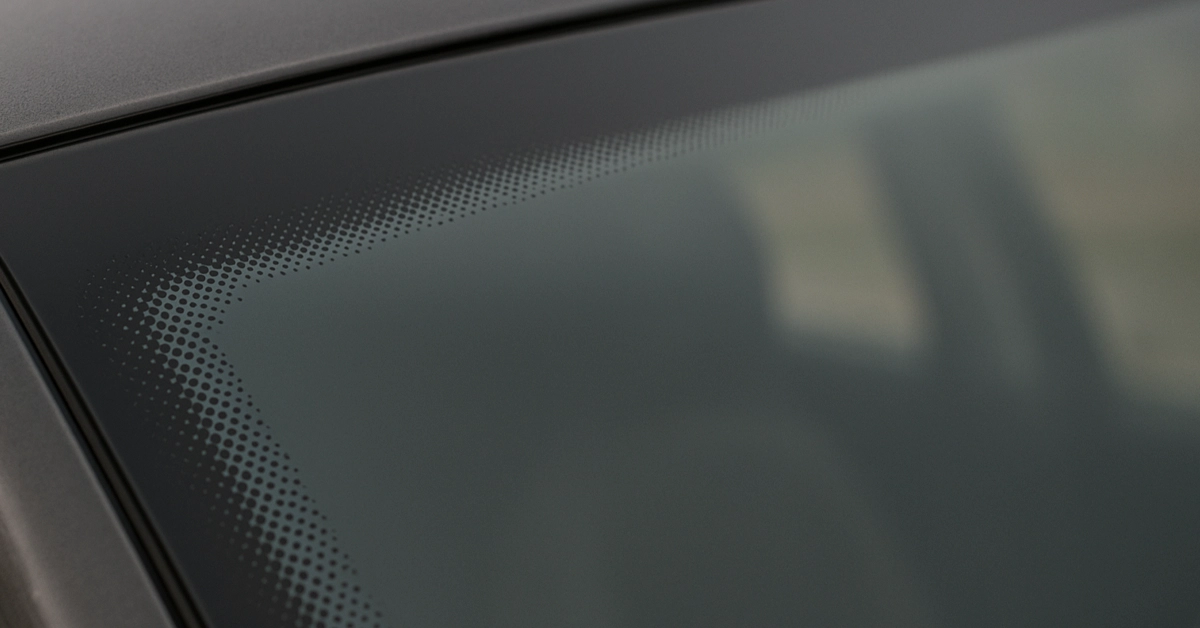

Next time you set off for a drive, take a peek at the edges of your windshield. You will likely see a faint, dotted pattern of black. Turns out, these are not some artistic design choices by carmakers.

Those black dots on the windshield are there for a reason and are quite important. These little specks are called frits and are more than a decorative touch.

They create a crucial connection point between the glass, the adhesive that bonds it to the car frame, and the frame itself. In simpler terms, those black dots on the windshield ensure your windshield stays securely in place while you cruise down the road.

Causes of Black Bots: Why Those Black Dots Are There

Back in the day, windshields were not always the sturdiest components of a car. They sometimes popped out during accidents, which was not exactly ideal. Thankfully, the industry adopted a superior solution: polyurethane adhesives. These adhesives create a much stronger bond when correctly applied, but there is a catch – sunlight exposure can cause them to degrade over time.

It becomes a significant issue for windshields, constantly basking in the sun’s rays. The answer to this challenge lies in the invention called the frit. This ceramic-based enamel is a baked-on coating applied to both sides of the windshield’s edges, it is often done with a technique called silk screening. The clever design serves a dual purpose:

Inner Strength: On the inside, the small dots on the windshield act as a crucial bonding point for the adhesive, ensuring a strong and secure connection between the glass and the car frame.
UV Protection: On the outside, the black dots around the windshield protect the adhesive from harmful ultraviolet radiation. This UV protection prevents the adhesive from degrading and keeps your windshield firmly in place.

As a bonus, the black dots on top of the windshield also conceal the adhesive and any imperfections around the edges, contributing to a clean and finished look.  

Types of Black Dots Around Windshields and Windows

While those black dots on car windows and windshields might seem like a minor detail, they are a clever design element. Here is why they are not all created equal:

Strength Where it is Needed the Most

Notice how the frits are thicker and more concentrated around the edges of your windshield? The size of a black dot on windshield glass varies depending on its location.

The frits are thicker and larger around the windshield’s edges, where the glass is more vulnerable to chips and cracks. This provides extra reinforcement in these high-risk zones.

As you move towards the centre of the windshield, the frits become smaller and more spaced out. It is a smart design choice that balances protection with a clean, uncluttered look.

Tailored for Your Car

Do not be surprised if your friend’s car has slightly different frits than yours. Manufacturers often customize the size and style of frits to complement the specific design of each car model. 

Effects of Black Dots on the Windshield

The unassuming black specks lining your car’s windshield play a vital role in your car’s safety and aesthetics.

Adhesive: One crucial function of the black dots on the windshield is to act as a contact point between the windshield and the car frame. The black enamel creates a slightly roughened surface, allowing the adhesive that bonds them together to grip more effectively. Like microscopic anchors, they ensure your windshield stays securely in place even during the bumpiest rides.
Shielding the Glue: Sunlight can wreak havoc on adhesives, and your car’s windshield is no exception. The black color of the frits is not cosmetic- it acts as a shield, blocking harmful ultraviolet rays from reaching the urethane sealant that bonds the glass to the frame. It also prevents the adhesive from degrading, keeping your windshield firmly secured.
Combating Distortion: Ever felt like you are looking through a funhouse mirror while driving? Sudden temperature changes can cause an optical distortion, making straight lines appear warped. The black dot pattern helps prevent this by acting like a heat spreader. It keeps the solid black band from heating up significantly faster than the rest of the glass, minimizing optical distortion and ensuring you have a clear and undistorted view of the road ahead.
Durability that Lasts: Remember the “baked” part? That high-temperature treatment makes the frits incredibly durable. Unlike other decorative elements, these black rims on car windows and windshields are built to last, resisting wear and tear for years to come.
Aesthetics: It is not all about science. Envision a black line slapped onto your windshield. Not exactly a thing of beauty, right? Thankfully, those black dots are not sprinkled on haphazardly. They follow a design called a halftone pattern. The dots might appear denser near the edges and gradually shrink and space out as they move away from the black border. Without this clever black dot pattern, the contrast would be harsh and jarring, turning your windshield into an eyesore instead of a sleek part of your car’s design.

Prevention and Maintenance

Like anything else, the black dots on the windshield can experience wear and tear over time. Here is what you need to know about frit maintenance:

Early Detection is Key

While a few missing dots are not a cause for immediate concern, keep an eye out for a more widespread fading of the black dot pattern. It is crucial to address any noticeable wear and tear on your frits as soon as possible. 

Why Worn Frits Matter

If the black dots on top of the windshield wear off, the underlying adhesive is exposed to harsh elements. While the chance of your windshield completely detaching is low, it is not a risk worth taking. A weakened bond can also compromise your windshield’s structural integrity in the event of an accident.

Repair vs. Replacement

The good news is that not all frit wear and tear require a complete replacement. If the black coating is fading but the overall structure of the frit remains intact, there may be options for windshield repair or touch-up, depending on the severity.

Signs it is Time for a New Windshield

There are situations where a full windshield replacement is necessary. Cracks in the glass, especially those obstructing your view or running along the edges, are a major red flag. Left unattended, these cracks can spread and compromise your safety. Other warning signs include pitting caused by prolonged exposure to debris and white haze at the edges, often due to hail or snow damage.

If you are unsure about the extent of the damage or the best course of action, consult a professional.

Prevention Tips

Mentioned below are some general tips to promote the longevity of black dots around the windshield.

Parking in the Shade: Excessive exposure to sunlight can accelerate the degradation of the adhesive, potentially impacting the frits as well. Park your car in a shaded area whenever possible to minimize sun damage.
Regular Car Washes: Regular car washes can help remove dirt and debris that might contribute to the wear and tear of the frits. Harsh chemicals or abrasive scrubbing techniques near the windshield edges must be avoided.

Hands Off the Dots: Why Windshield Frit Removal is a No-Go

Those black dots on the windshield might seem like a tempting target for a DIY project, but experts strongly advise against tampering with them. Here is why:

Essential for Security: The small dots on the windshield are crucial for bonding it properly to your car’s frame. Removing or altering the frits could compromise this bond, potentially leading to leaks or windshield detachment in extreme cases.
Leave It to the Professionals: The frits are not just painted on- they are fused to the glass during manufacturing using a high-temperature process. This creates an unbreakable bond, making them a permanent part of the windshield’s structure. Unlike some decals or films, scratching or scraping at the frits is unlikely to remove them entirely and could damage the windshield itself.

If you want to alter the appearance of your windshield, consult a professional about non-compromising options.

The Bottom Line

You have likely seen those tiny black dots on the windshield countless times. At first glance, they might have seemed insignificant, mere cosmetic details. But now you know! They are a testament to clever engineering, ensuring your car’s windows are fastened securely while maintaining a sleek and polished look. 

At NuVision Auto Glass, we understand the importance of a safe and reliable windshield. If you notice any fading, chipping, or damage to your frits, it is time for a professional inspection. If need be, our experienced technicians will ensure your new windshield is installed with frits intact, maximizing safety and aesthetics.
